Location: Home>PRODUCTS>Plug-In>12W Wall-amount Power Adapter

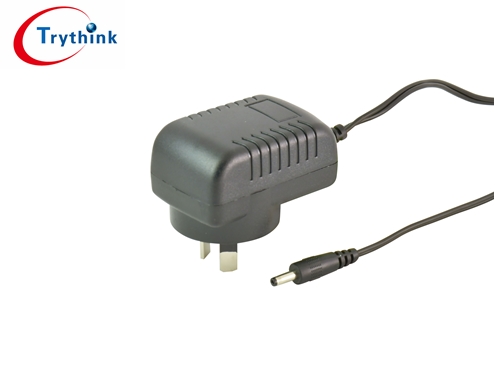

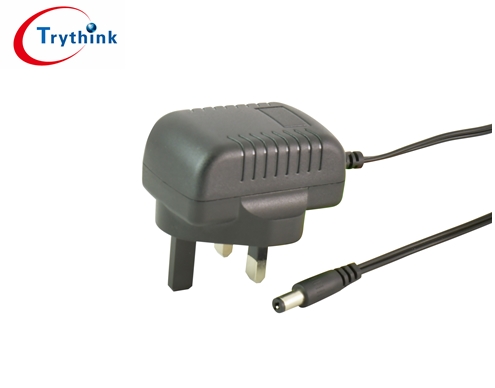

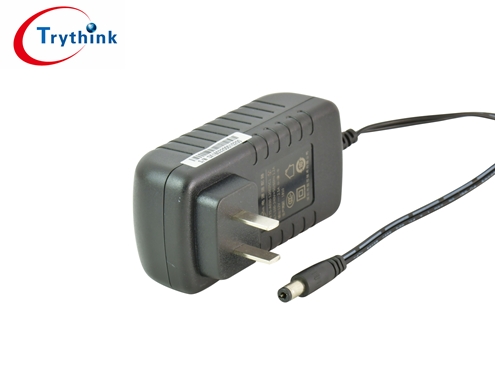

12W Wall-amount Power Adapter

Model No.：TS-A012-120010XX

Features：

Meet safety and EMC request

Meet DOE VI and ERP VI

High reliability and stability, Long Life

No Y-cap Design（optional）

Certification：

12W Wall-amount Power Adapter

Detailed Spec

Input

Input Range：
180V-240VAC
Inrush Current：
60A Max
Power Consumption：
Level VI 0.075W Max

Output

Output Voltage/Current：
12V1.0A
Line Regulation：
±5%
Adjustable voltage range：
9V-12V

EMC

SURGE：
1KV-6KV (optional)
ESD：
Air ESD ± 8KV Contact ESD ± 6KV
CE、RE：
EN55032,FCC15,GB9254 Class B etc

Others

Dimension：
（L*W*H） 56.0 * 28.0 * 42.0mm
